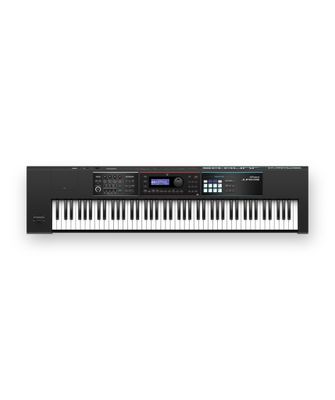

Roland Juno-DS88 Synthesizer

Life in a modern band doesn’t run like clockwork. In the same day, you might be rehearsing, recording and playing live, with each session demanding a whole new musical approach. Some synths will slow you down with their bulky size and uninspired sounds. The Roland JUNO-DS88 sets you free. Wherever your music leads you, this streamlined weighted-action 88-note synth will follow, with compact dimensions, smart operation and a choice of pro onboard sounds for anything from studio work to street performance. The JUNO-DS88 is the ideal instrument for piano-oriented keyboard players.

Standard Features

• 88-note Ivory Feel-G Keyboard with weighted-action feel in a lightweight design that’s easy to transport
• Gig-ready instrument with pro sounds, enhanced performance features, battery-powered operation, and intuitive operation
• Instant access to essential pro-quality sounds for band performance, from acoustic and electric pianos, organs, synths and other stage favorites
• Wave expansion slot enables users to download new sound waveforms, available for free at Roland’s Axial website
• Sample import function for playing user WAV files on the JUNO-DS88’s keyboard
• Easy sound manipulation and editing with hands-on knobs and sliders
• Eight Phrase Pads for triggering samples and audio songs stored on USB memory
• Mic input and dedicated Reverb, Vocoder and Auto Pitch effects for impressive vocal performances
• Intuitive eight-track pattern sequencer with non-stop recording for quickly developing song ideas
• USB audio/MIDI and DAW Control mode
• JUNO-DS librarian is available for managing the onboard sounds from your computer

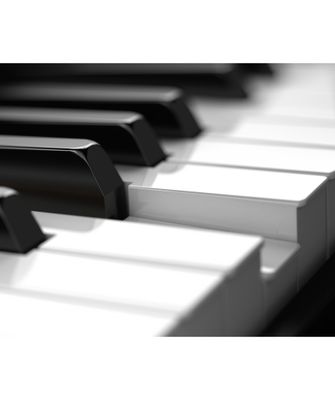

Keyboard: 88 keys (Ivory Feel-G Keyboard with Escapement)

Sound Generator
Maximum Polyphony: 128 voices
Parts: 16 parts

Preset Memory
- Patches: Over 1200
- Drum kits: Over 30
- Performances: 64
* GM2 compatible sounds are included.
User Memory
- Patches: 256
- Drum kits: 8
- Performances: 128
- Favorites: 100

Wave Expansion Slots: 1 slot
* The wave expansion slot is rewritable internal waveform memory. You can download data from the Axial sound library site and write it via a USB flash drive into the JUNO-DS's internal wave memory (slot).

Sample Import Function
File Format
Audio file: WAV (44.1 kHz, 16 bits)
Supports multi-sample (System Program Ver. 2.00 or later, with JUNO-DS Tone Manager)

Effects
- Multi-effects: 3 systems, 80 types
- Chorus: 3 types
- Reverb: 5 types
- Mic input reverb: 8 types

Audio File Player Section
File Format
Audio file: WAV, AIFF, MP3

Others
Rhythm Pattern
Preset: 30 groups x 8

Arpeggio
Preset: 128

Controllers
Pitch bend/Modulation lever
Control knob x 4
Level slider x 4
Multicolor pad x 8

Display
Graphic LCD 256 x 80 dots

External Storage Device
USB flash drive (supports USB 2.0 Hi-Speed flash memory)

Connectors
PEDAL HOLD jack
PEDAL CONTROL jack
MIC INPUT jack: 1/4-inch phone type
EXT INPUT jack: stereo miniature phone type
OUTPUT jacks (L/MONO, R): 1/4-inch phone type
PHONES jack: stereo 1/4-inch phone type
MIDI connectors (IN, OUT)
USB MEMORY port
USB COMPUTER port (supports USB MIDI/AUDIO)
DC IN jack

Power Supply

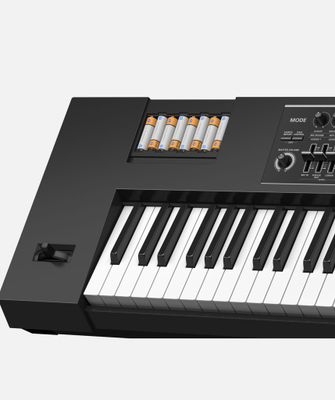

DC 9 V: AC adaptor or rechargeable Ni-MH battery (AA, HR6) (sold separately) x 8

* Battery life for continuous use (differs depending on the conditions of use) Rechargeable nickel metal hydride batteries: approximately 5 hours (when using batteries having a capacity of 1900 mAh) (approximately 4 hours if USB flash drive is connected)
* Carbon-zinc or alkaline batteries cannot be used.

Current Draw600 mA

Accessories
Owner's manual
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord

Options (sold separately)
Keyboard stand (*1): KS-18Z, KS-12, KS-G8B
Pedal switch: DP series
Expression pedal: EV-5
USB flash memory (*2)

*1 When using the KS-18Z, ensure that the height of the unit is one meter or lower.
*2 Use USB Flash Memory (supports USB 2.0 Hi-Speed Flash Memory) sold by Roland. We cannot guarantee operation if other products are used.
