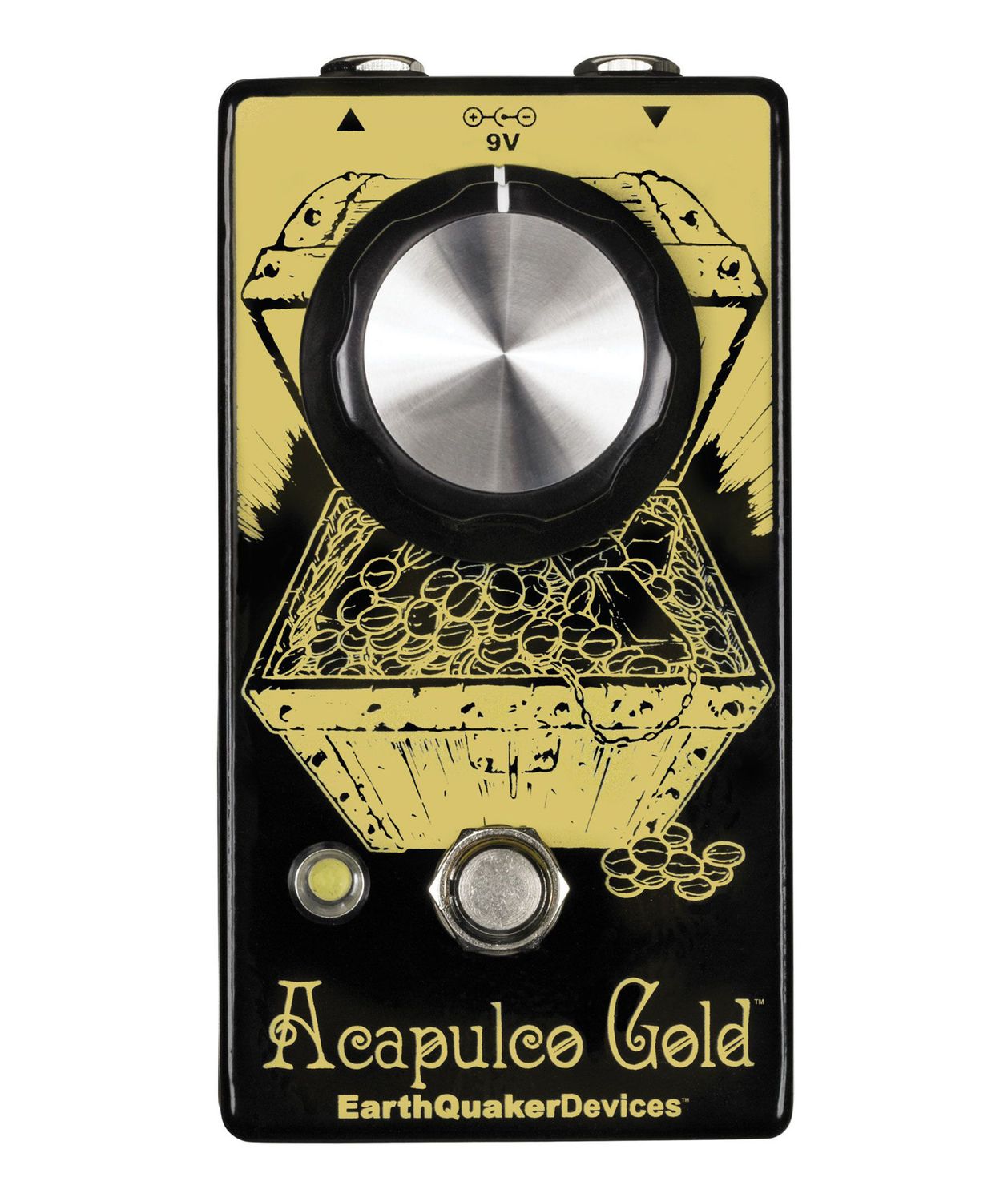

Big Knob: The big knob sets the output level, sometimes known as Volume. PLEASE BE CAREFUL, the Acapulco Gold is extremely loud!
With your guitar’s volume all the way up, the Acapulco Gold roars like a wide-open Model T on the verge of explosion. At just-barely-backed-off, the Gold becomes a raunchy overdrive. At minimum guitar volume settings, the Acapulco Gold delivers a hazy, Nashville-sounding spank to your tone.
How about this? If your guitar has separate volume and tone controls for each pickup and a three-way selector switch, this little one-knob banger becomes a three-channel tone monster at the flick of your wrist!
Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm)
Current Draw: 18 mA
Input Impedance: 50 kΩ
Output Impedance: <10 kΩ
Switching: This device is true bypass and uses electronic relay-based switching. Audio will not pass without power.
Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
