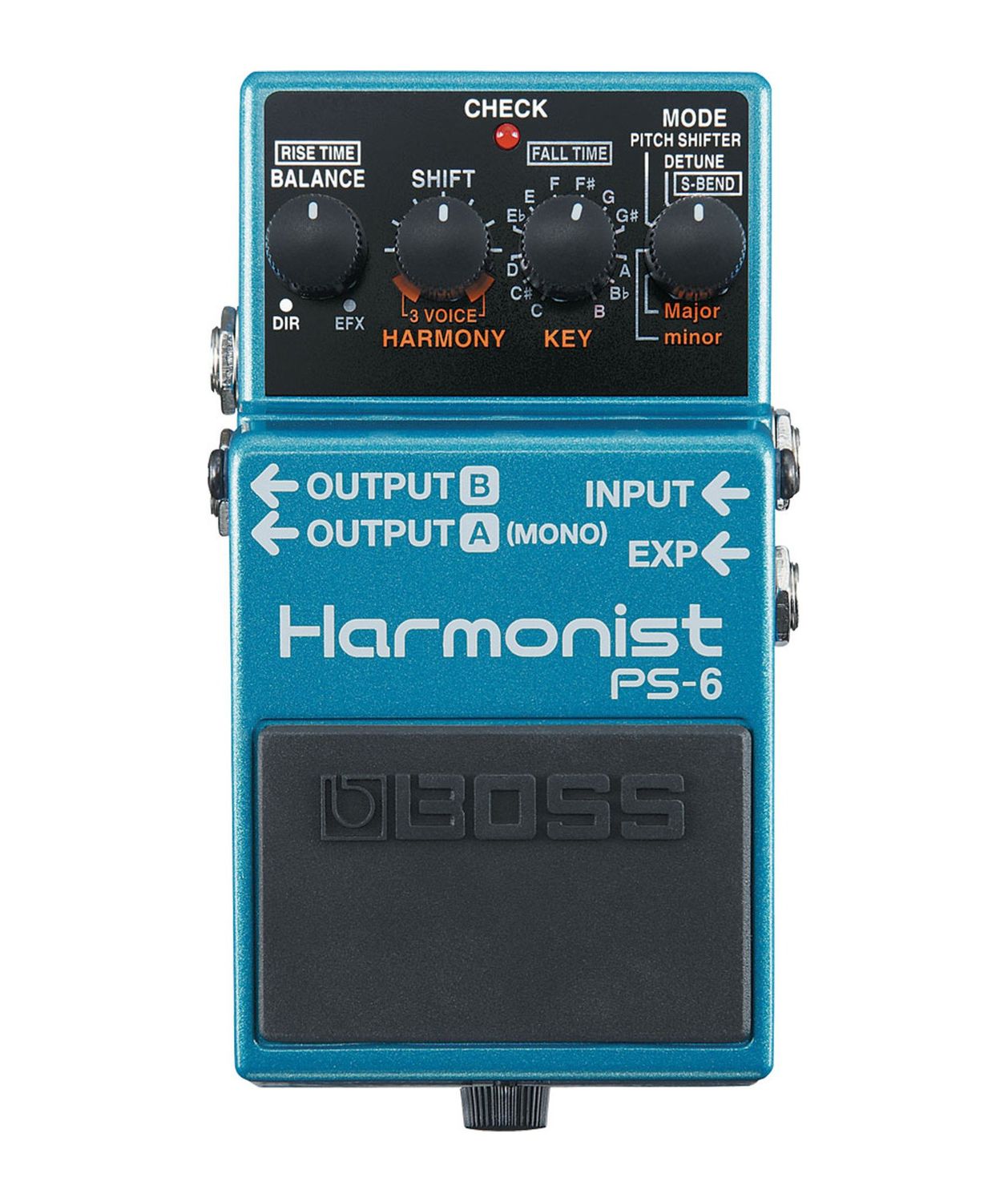

Boss PS-6 Harmonist

Among the effect modes are Harmony, Pitch Shifter, and Detune, plus the all-new Super Bend for authentic pedal-bending effects and wild three- and four-octave pitch sweeps. You can even control pitch with an optional expression pedal. The harmony function is fast and simple to use, and supports a variety of interval patterns. It’s easy to create rich, three-voice harmony: choose a major or minor key, and set SHIFT to 3-VOICE—that’s it! The PS-6 Harmonist is an unbeatable combination of superior sound quality, ease of use, and powerful pitch effects, all under one hood.

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls

MODE knob
KEY/FALL TIME knob
SHIFT knob
BALANCE/RISE TIME knob
Pedal switch

Indicator

CHECK indicator (Used for indication of check battery)

Connectors

INPUT jack: 1/4-inch phone type
OUTPUT jack A(MONO)/B: 1/4-inch phone type
EXP jack: TRS 1/4-inch phone type
DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)

Current Draw: 45 mA

Expected battery life under continuous use Alkaline: Approx. 8 hours
Carbon: Approx. 2 hours
*These figures will vary depending on the actual conditions of use.

Accessories

Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery (9 V, 6LR61)

Options (sold separately)

AC adaptor: PSA series
Expression pedal: Roland EV-5/BOSS EV-30, FV-500H, FV-500L
